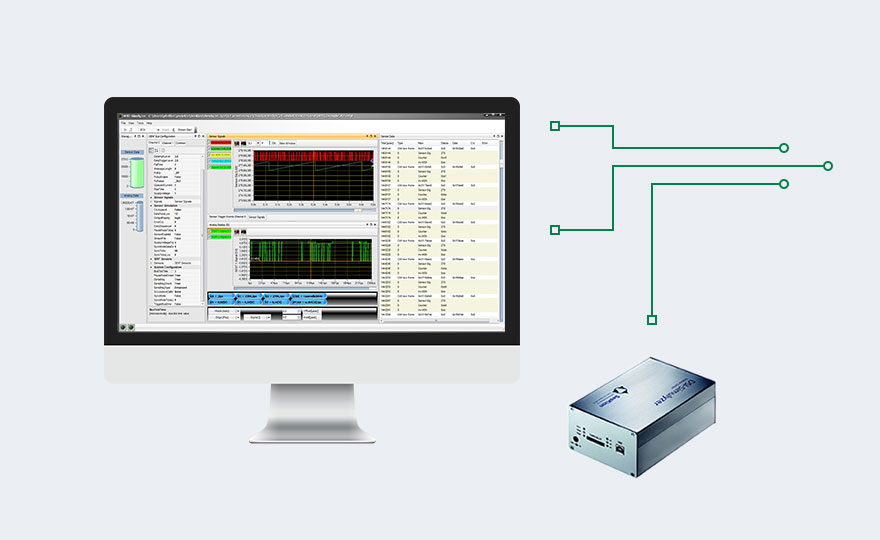

DSI3-Simulyzer with its software

Hardware and software

DSI3-Simulyzer

Analyze, simulate and test DSI3 signals –
with a compact interface box for developing and testing sensor systems.

  • Analysis: Visualize DSI3 bus communication and record time-stamped data
  • Simulation: Standard DSI3, up to six ultrasonic sensors per channel and custom protocols
  • Integration: ANSI-C API and optional LabVIEW Library
Request product →View data sheet

Software

Software & downloads

Software for analysis, configuration and simulation. The current version is available as a 32-bit download.

DSI3-Simulyzer Software V1.8.21

Current version

Released on 11 August 2026 · Windows 10 and 11

64-bit versionNot yet released
32-bit versionCurrently available version
Download 32-bit ↓
The current software is available as a 32-bit version. The 64-bit version and release notes are coming soon.
Show older software versions
VersionDateDownload
V1.8.2017.06.2026Download installer
V1.8.1913.11.2025Download installer
V1.8.1814.10.2025Download installer
V1.8.1717.07.2025Download installer
V1.8.1609.01.2024Download installer
V1.8.1502.10.2023Download installer
V1.8.14.107.08.2023Download installer
V1.8.13.106.07.2023Download installer
V1.8.1205.06.2023Download installer
V1.8.1113.05.2023Download installer
V1.8.1024.04.2023Download installer
V1.8.825.10.2022Download installer
V1.8.306.05.2022Download installer
V1.8.218.04.2020Download installer
V1.7.1108.05.2019Download installer
V1.7.911.02.2019Download installer
V1.7.707.11.2018Download installer
V1.7.410.11.2016Download installer

Windows GUI

Optional. Configure signals, baud rates, error detection and trigger events; visualize, time-stamp, import and export bus data.

ANSI-C API

Included in the Simulyzer Box for integration into your own applications.

LabVIEW Library

Optional library for integration into LabVIEW applications.

Sensor simulation

Optional: standard DSI3, up to six ultrasonic sensors on one channel, and custom protocols.

Technical data

Specifications

Key technical characteristics at a glance. Refer to the data sheet for detailed specifications.

Interfaces
USB 2.0 and connections for ECU and sensor
Power supply
External power supply unit
Compatibility
Windows 10 and 11, Microsoft .NET Framework 2.0, and Linux via API without GUI
Recording
DSI3 voltages and currents at 3 MS/s
Data export
CSV files for Excel and NI-TDMS files
DSI3 timing
t_Bit = 8 µs; t_Chip = 2.7–10 µs
Operating modes
All operating modes of the DSI3 specification
Hardware options
Optional CAN interface

Applications and system integration

Applications with the DSI3-Simulyzer

Product background and integration into existing test setups.

Sensors in a vehicle

Connected test setup

Hardware-in-the-loop simulation (HiL)

For HiL applications, several Simulyzer Boxes are linked and synchronized. Different sensor types can generate synchronized data streams for an ECU in an airbag system. The sensor simulation tools are used to evaluate the data.

View HiL solution →

Knowledge & support

Documentation and useful links

Product documents, application notes and help with setup and integration, organized by topic.

Ordering information

Article numbers

Hardware, options and software licenses clearly identified for enquiries and orders.

Simulyzer Box and hardware options

Art. no.ProductDescription
3.1001DSI3-Simulyzer USB BoxHardware V2, 1-channel, for analysis and sensor simulation.
3.2001Optional CAN interfaceCAN interface for the DSI-Simulyzer.

Software licenses

Art. no.ProductDescription
3.3001Windows software packageDSI3-Simulyzer analysis and simulation; Simulyzer Box or PC-ID bound license.
3.3011DSI3 Elmos 524.17 standard sensor modelSoftware license per box and per sensor model.
3.3012DSI3 ultrasonic sensor modelSoftware license per box and per sensor model.
9.0011LabVIEW-2016 Library32- or 64-bit; PC-ID or Box-SN bound license.
9.0012LabVIEW-2016 Library company license32- or 64-bit.

Accessories and other items

Art. no.ProductDescription
9.0001Warranty extensionOptional extension of the Simulyzer Box warranty to three years.
9.0002Connection boxSensor adaptation of up to two PSI5, DSI3 or SENT interfaces via banana jacks; with ribbon cable for the Sensor/ECU IO socket of a Simulyzer Box.

Additional software applications and custom solutions are available on request.

Does your test setup need a custom solution?

We help you select suitable hardware, software and interfaces, and support custom measurement and simulation solutions.

Discuss your project with us →
