Use of the CRC error detection (parameter CRCAppend) |
|
| The CRC-data section can be used optionally. For activation the parameter CRCAppend has to be set to True. The kind of CRC calculation is set with the parameter CRCMode. PredefinedFalse |
 |
|
Number of the low ticks before the voltage changes to VHigh (parameter DataTicksLow) |
|
| The time for the Low signals of the sensor can be selected between 4-12 Ticks. The parameter DataTicksLow includes the number of ticks. Time of the low signal=number of ticks x tick clock in µs. Predefined12 |
 |
|
Polarity of the signal levels (parameter DefaultPolarity) |
|

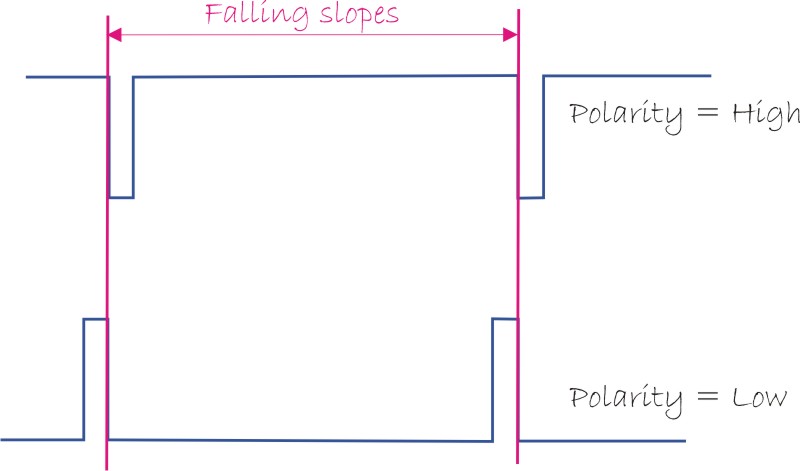

| Polarity of the signal sequence. The parameter defines whether the idle voltage level is VHigh or VLow. The data transmission time is nevertheless from falling slope to falling slope.  Predefined High |
 |
|
CRC-error generation (parameter ErrorCrc) |
|
| Number of the generated CRC error. Enter in decimal format. Predefined 0 |
 |
|
Definition of a injected data sequence (parameter ExecSequencer) |
|
| Simulated Data sequences can be defined individually and stored with the SequenceEditor. The parameter ExecSequencer includes the address (Decimal format)of the defined and saved sequence. Predefined 0 |
 |
|
Time definition of a pause impulse (parameter PausePulseTicksLow) |
|
| Defines the time [tick clocks] within the pause impulse stay at low level resp. until the voltage level changes from low to high. The entry is number of ticks in decimal format. Time of the low impulse= number of ticks x tick clock in µs. Predefined 8 |
 |
|
Activation of the sensor simulation (parameter SensorEnabled) |
|
| Activates the sensor simulation with the generation of the sensor data selfgenerated. The sensor data will be injected of the parameter SensorEnabled is set to True and (!) the sensor signal parameter SignalSource is set to 0. Predefined False |
 |
| |
 |
| Supply voltag of trigger level (Parameter SupplyVoltageTriggerLevel) | |
| Supply voltage trigger-level from which the sensor recognize the supply voltag. The entry is directly in [V]. Predefined 4 V |
 |
| Only for Infineon SPC | |
| |
 |
