Tick (Parameter BusTickTime) |
|
| Clocked time lag in µs - tick clock Predefined 3µs |
 |
| Supply Voltage (parameter Supply Voltage) | |
| Supply voltage of the SENT bus. Predefined 0 V |
 |
| Voltage -high level (parameter DataHighLevel) | |
| Voltage level at signal "high". Predfined 5 V |
 |
|
Definition of the pull-up-resistor |
|
| Parameter PullUp: Connection to the according voltage line. Predefined 3,3 V Parameter PullValue: Value of the pull-up-resistor. Predefined 2,2 kOhm |
 |
|

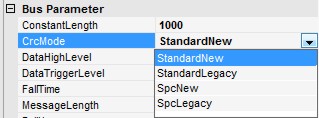

Definition of the CRC error detection (Parameter CrcMode) |
|
| Selection of the CRC error detection. You can get a detailed description of the error detection at the SENT specification. . Predefined StandardNew |
 |
|
Definition of pause impulse |
|
| Definition of a constant data transmission time, which will get by filling the real data transmission time with generated pause impulse. Parameter PausePulseEnable Activation of the pause impulse generation. Parameter have to be set to True. Predefined False Parameter ConstantLength Definition of the constant time slot of an transmission cycle in µs. Predefined 0 |
  |
