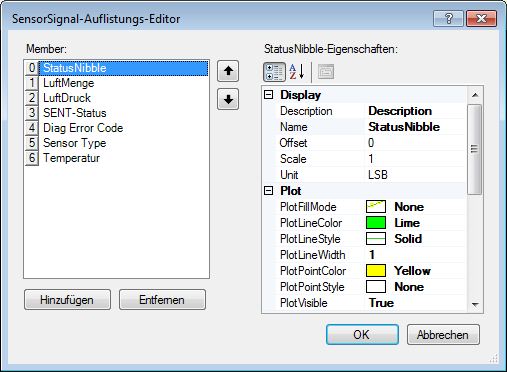

Call of the sensor collection editor

The sensor collection editor offers the definition of the sensors and is placed at the BUS configuration window.



DSI Sensors

Section of the BUS configuration window
Sensors Definition of a sensor Opens the Sensor collection edtior par_sensignal.jpg



Each signal will be assigned to a placeholder and an automatically indes.








Procedure


Open the Sensor collection editor at the
BUS configuration window in the section SENT Sensors by clicking on the symbol symbeditor00174.jpg.
