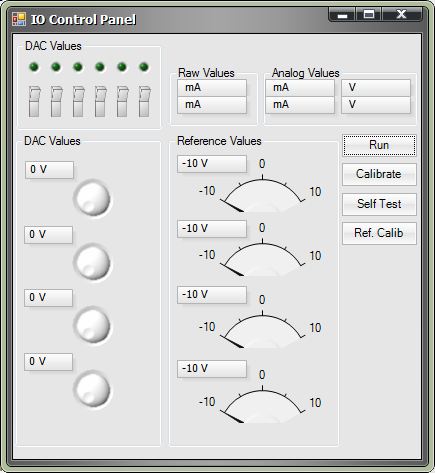

The I/O-control panel enables:
the visualizing of the digital inputs (as LEDs)
the activating/deactivating of the single digital outputs
if the option no function is selected in the Pin configuration
the direct manipulation of the 4 DAC-interfaces by applying a voltage.
Run: Starts the circuit. Injection of the defined values until the button is pressed again (Stop).
Calibrate: Calibrating the signal values.
Self test: Proceed a self test.
