Standard sensor signal definitions are included at the predefined projects.

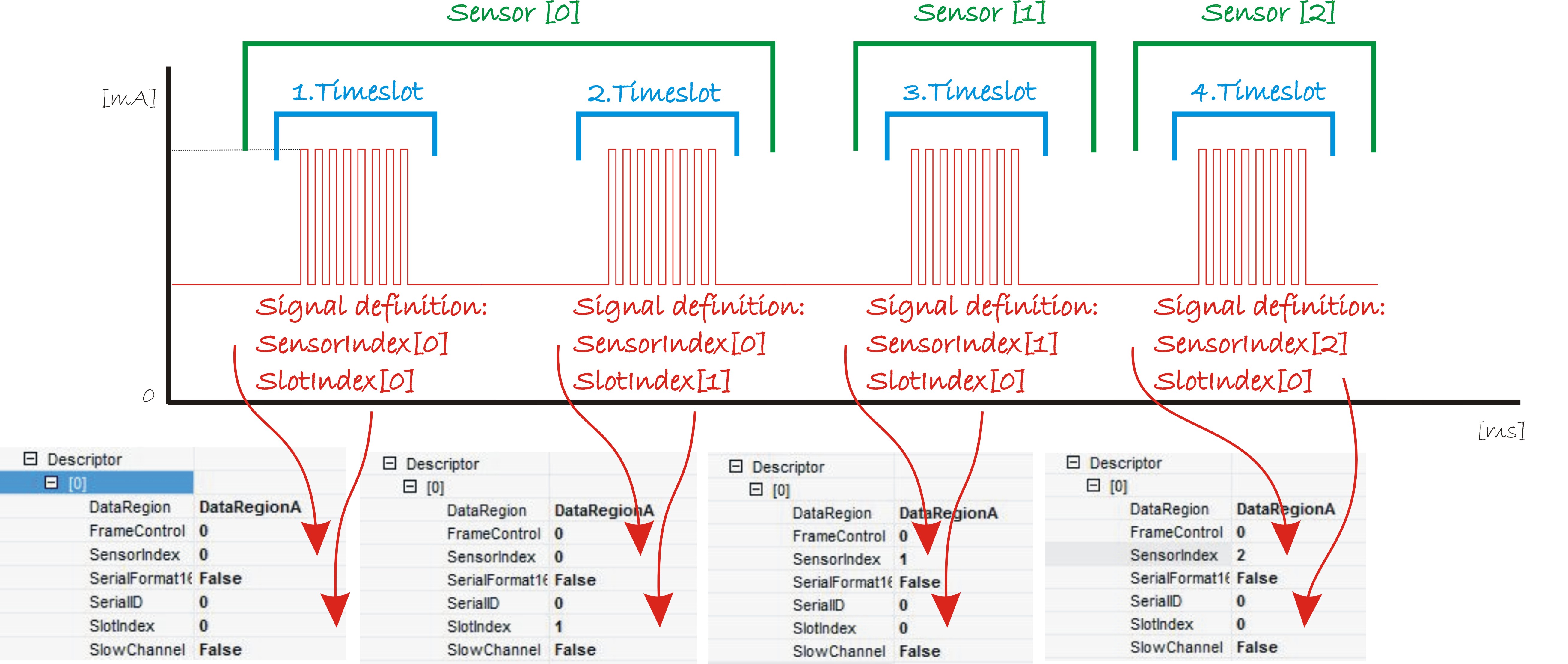

To record a sensor signal, each signal has to be assigned to a timeslot.
The assignment is done with the parameters sensorindex and slotindex.
During the definition an automatic index starting with [0] is assigned to the parameter sensorindex.
During the further definition of a slot, each slot gets a additional index again starting with [0] and assigned to the parameter slotindex. Therefore a unique identifier is guaranteed and allows the assignment of a signal to the slot.
In whole six sensor signals per channel can be defined and displayed - for example six sensors with one signal each or one sensor with 6 signal, which are defined in one timeslot.
The definition is done at the signaleditor.
