Definition of the voltage levels

Bus-Parameter			Section of the BUS Configuration window
SupplyVoltageHigh	High level of the supply voltage	Direct value entry in V
SupplyVoltageIdle	Idle level of the supply voltage	Direct value entry in V
SupplyVoltageLow	Low level of the supply voltage	Direct value entry in V
Systemconfiguration
VoltageTreshold	Voltage threshold where the voltage level is identified as a voltage signal	Direct value entry in V
SupplyVoltageTriggerLevel	Supply voltage trigger level where the voltage is identified as supply voltage	Direct value entry in V
IdleVoltageThreshold	Voltage threshold where the idle voltage is identified.	Direct value entry in V

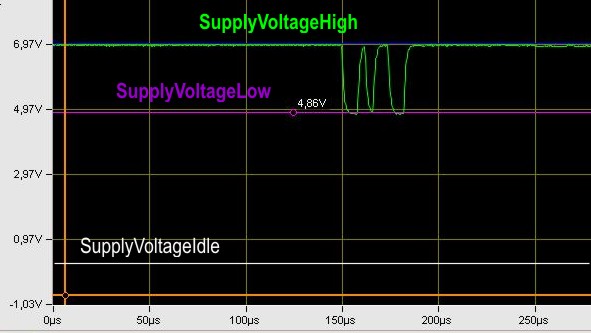

Impulse diagram:
